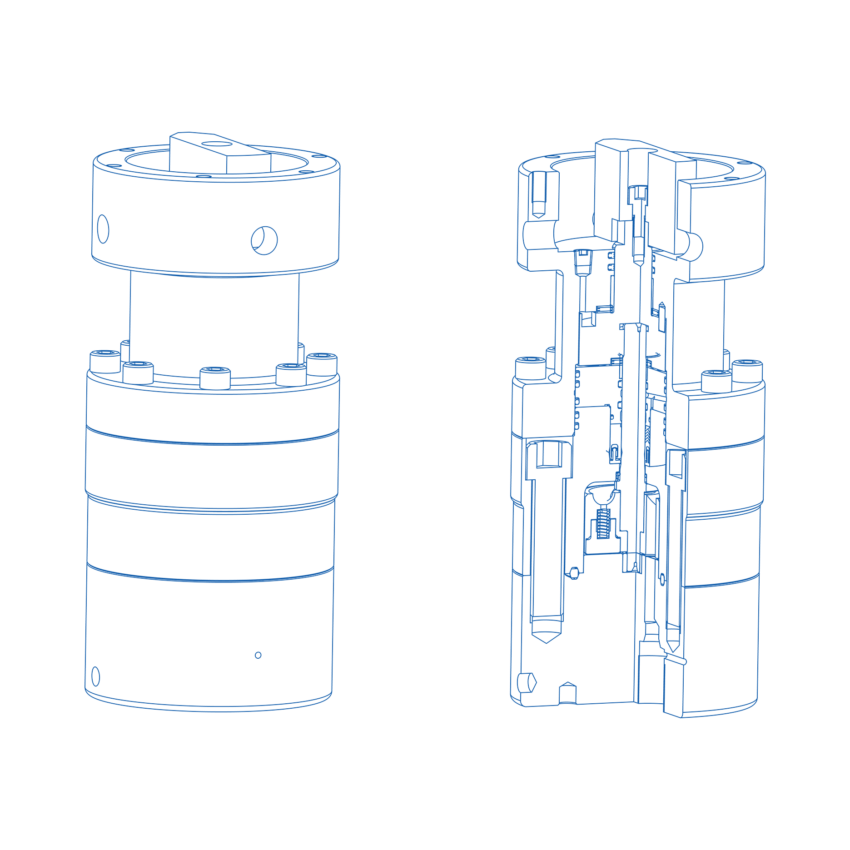

// Rotary Disc Valve
BEL Valves’ Rotary Disc Valve is offered as a small bore solution to facilitate chemical injection and/or hydraulic supply, when desired, on production manifolds.
The design premise is based upon simplicity and robustness for assurance of successful operation even when installations extend to the most hostile of environments.
Specification
| Specification | |
|---|---|
| Pressure rating | API 2,000 to 15,000psi |
| Water depth | To 3,000m |
| Bore sizes | To suit ½”, ¾” and 1” tubing connections |
| Material options | Super duplex and super alloys |
| Actuation | Manual, ROV, Hydraulic |
| Typical standards | API 6A and ISO 10423, API 6D SS and ISO 14723, API 17D and ISO 13628-4 |
Configuration
- Forged body
- Metal to metal sealing
- Various end connection options
Features
- Compact design
- Quarter turn
- Metal-to-metal seated
- On-off
- Tungsten carbide hard facing
