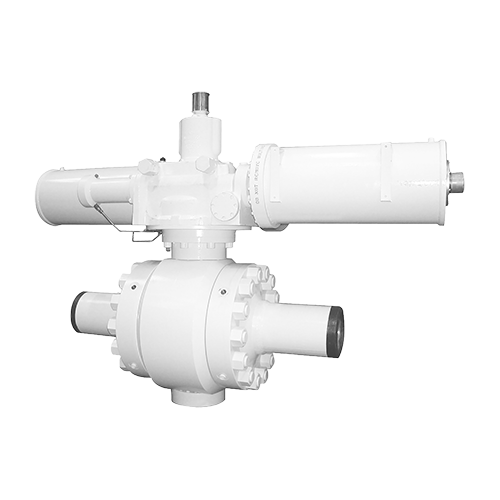

// Side Entry Ball Valves
Our flexibility towards delivering an optimised Ball Valve solution ensures that both client and governing industry requirements are always met and allows for a fit-for-purpose final product to be delivered on time and within budget.
BEL Valves ball valve range is available in bore sizes from 2” to 24” and delivers a robust and reliable solution.
Specification
| Specification | |
|---|---|
| Pressure rating | ANSI Class 150 to 4,500 API 2,000 to 15,000psi |
| Water depth | To 3,000m |
| Bore sizes | 2” to 24” |
| Material options | Carbon and low alloy steel, stainless steel, duplex, super duplex and super alloys |
| Actuations | Manual, ROV, hydraulic (FSC, FAI, FSO) |
| Typical standards | API 6A and ISO 10423, API 6D SS and ISO 14723, API 17D and ISO 13628-4 |
Configurations
- Forged body
- Full or reduced bore
- Metal to metal sealing
- Single or double block
- Various end connection options
Features
- Bi-directional sealing
- On-off
- Tungsten carbide hard facing (metal to metal)
- Trunnion mounted
- Forged body
Specification
| Specification | |
|---|---|
| Pressure rating | ANSI 150 to 4,500 to API 15,000 psi |
| Bore sizes | 1½” to 56” |
| Material options | Carbon and low alloy steel, stainless steel, duplex, super duplex and super alloys |
| Actuation | Manual, hydraulic (FSC, FAI, FSO), pneumatic, electric |
| Typical Standards | API 6A and ISO 10423, API 6D and ISO 14313, API 6AV1 |
Configurations
- Bolted and all welded body designs
- Full or reduced bore
- Metal to metal or soft seated
- Double block and bleed standard or integral design
- Various end connection options
Features
- Bi-directional sealing
- On-off
- Tungsten carbide hard facing (metal to metal)
- Trunnion mounted
- Forged body
Specification
| Specification | |
|---|---|
| Pressure rating | ANSI 150 to 4,500 to API 15,000 psi |
| Bore sizes | 1½” to 56” |
| Material options | Carbon and low alloy steel, stainless steel, duplex, super duplex and super alloys |
| Actuations | Manual, ROV, hydraulic (FSC, FAI, FSO), electric |
| Typical standards | API 6A and ISO 10423, API 6D and ISO 14313, API 6AV1 |
Configurations
- Bolted and all welded body designs
- Full or reduced bore
- Metal to metal or soft seated
- Double block and bleed standard or integral design
- Various end connection options
Features
- Bi-directional sealing
- On-off
- Tungsten carbide hard facing (metal to metal)
- Trunnion mounted
- Forged body
