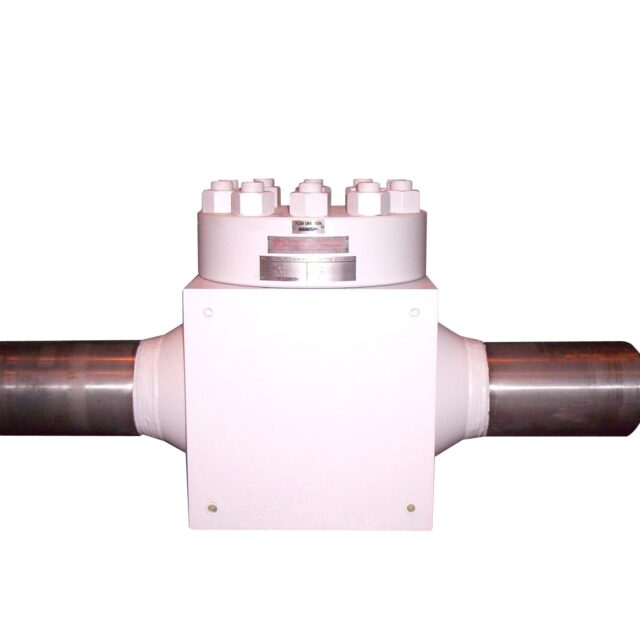

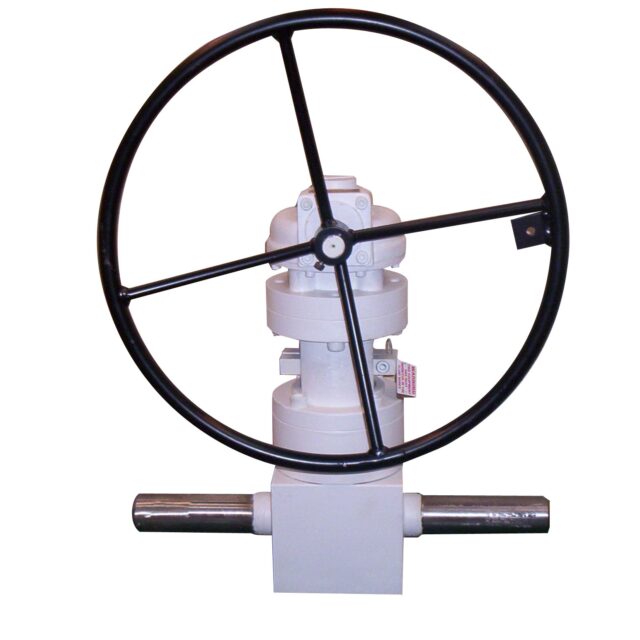

// Globe Valve
At BEL Valves, our expertise allows us to deliver accurate and reliable Globe Valve solutions for specialist petrochemical applications in accordance with the relevant industry codes and standards.
Globe valves can be opened and closed to give a gradual change of flow, reducing the risk of downstream pressure shock. The BEL Valves design provides tight shut off at both high and low pressures which is maintained through changing temperatures. With a design suitable for closing against differential pressure, our Globe Valves can also be modified to provide accurate throttling service.
Our Globe Valves are the perfect solution for use in critical, corrosive and hazardous applications including downstream processing, urea and ammonia production.
Specification
| Specification | |
|---|---|
| Pressure rating | API 2,000 to 30,000 psi |
| Bore sizes | ⅝” to 8” |
| Material options | Carbon and low alloy steel, stainless steel, duplex, super duplex and super alloys |
| Actuation | Manual, hydraulic, electric, pneumatic |
| Typical standards | API 6A and ISO 10423, API 6D and ISO 14313, ASME B16:34 |
Configuration
- Stellite or tungsten carbide hard facing
- Cast or forged body
- Full or reduced bore
- Studded, butweld, flanged, threaded, socket weld and screwed end connection options
Features
- Steam jacket
Specification
| Specification | |
|---|---|
| Pressure rating | API 2,000 to 30,000 psi |
| Bore sizes | ⅝” to 8” |
| Material options | Carbon and low alloy steel, stainless steel, duplex, super duplex and super alloys |
| Actuation | Manual, hydraulic, electric, pneumatic |
| Typical standards | API 6A and ISO 10423, API 6D and ISO 14313, ASME B16:34 |
Configuration
- Stellite or tungsten carbide hard facing
- Cast or forged body
- Full or reduced bore
- Studded, butweld, flanged, threaded, socket weld and screwed end connection options
Features
- Steam jacket
