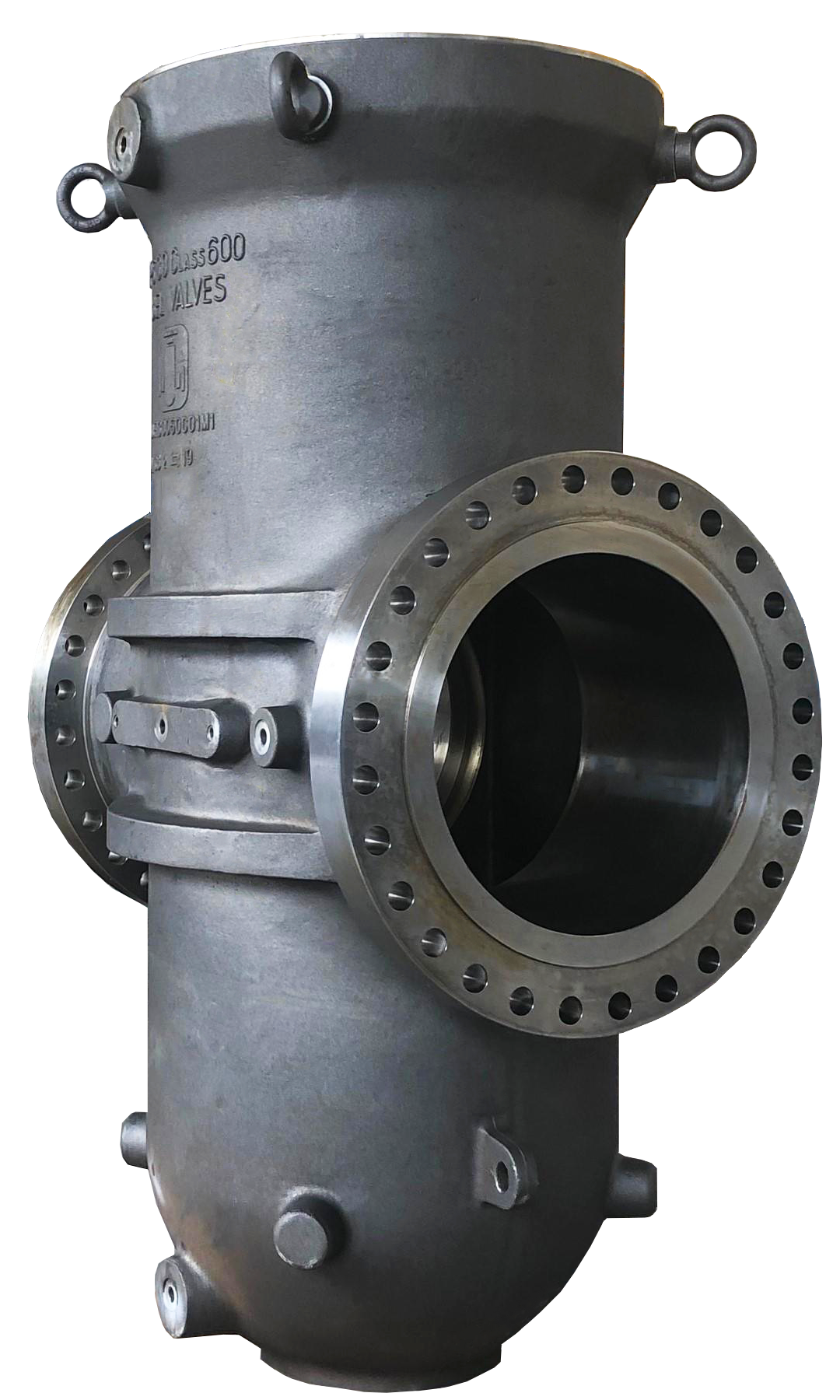

// Midstream Pipeline Gate Valves
BEL Valves’ Midstream Pipeline Gate Valves provide reliable sealing performance and therefore a wide variety of elements, including corrosive fluids, as well as normal liquid and gas, can be used with this product.
In instances of severe service, a metal-to-metal seat layout with tungsten carbide coating can be provided. The top-entry construction allows for easy in-line maintenance.
Specification
| Specification | |
|---|---|
| Pressure rating | ANSI 150 to 1,500 |
| Temperature | -46˚c to +720˚c* |
| Bore sizes | 4” to 56”+ |
| Material options | Carbon steel, low alloy steel, stainless steel. For other materials contact BEL Valves. |
| Actuation | Manual, hydraulic (FSC, FAI, FSO), electric, pneumatic |
| Standards | API 6D |
Configuration
- Cast or fabricated body
- Slab or expanding gates
- Flanged or welded ends
- Rising stem
- Soft or primary metal; secondary soft seated as standard
- Metal seated as option
FEATURES
- Full bore piggable for low pressure loss
- High integrity and reliability
